Description
Features
● Triac Dimmable & CCT Adjustable
● Latest New Type Ambient decoration Lighting
● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● ETL,TUV, SAA,CE, Rohs approved
● Directly replace traditional & complicated ambient lighting
● In-line Connection can be connected up to total 200W
Applications
● Housing & office decoration
● Exhibition hall & Office,airport
● hotel,hall,ballroom,shopping malls
● office buildings,home etc
Technical Specifications
● Input Voltage: AC120V/180-240V 50/60Hz
● Total harmonic distortion: THD<19%
● Power Factor: PF>0.95
● Efficiency: 70-90LM/W
● Color Index: Ra>82
● UGR: <19
● Life Span: 50,000 hours
● Switch Times: >100,000
● Operation Temperature: -25°C ~ +50°C
Item No. | Length | Power | LED type | LED QTY | Power Factor | Luminous flux(LM) | CRI | Package Size |
LY-GYDL300-3W | 1ft/300mm | 3W | SMD2835 | 88pcs | PF>0.95 | 210-270lm | >82 | 410*190*210mm 10pcs/ctn |
LY-GYDL600-6W | 2ft/600mm | 6W | SMD2835 | 200pcs | PF>0.95 | 420-540lm | >82 | 700*190*210mm 10pcs/ctn |
LY-GYDL900-9W | 3ft/900mm | 9W | SMD2835 | 320pcs | PF>0.95 | 630-810lm | >82 | 1010*190*210mm 10pcs/ctn |
LY-GYDL1200-12W | 4ft/1200mm | 12W | SMD2835 | 440pcs | PF>0.95 | 840-1080lm | >82 | 1310*190*210mm 10pcs/ctn |
LY-GYDL1500-15W | 5ft/1500mm | 15W | SMD2835 | 560pcs | PF>0.95 | 1050-1350lm | >82 | 1610*190*210mm 10pcs/ctn |
LY-GYDL1800-18W | 6ft/1800mm | 18W | SMD2835 | 640pcs | PF>0.95 | 1260-1620lm | >82 | 1875*190*210mm 10pcs/ctn |
LY-GYDL2400-24W | 8ft/2400mm | 24W | SMD2835 | 880pcs | PF>0.95 | 1680-2160lm | >82 | 2485*190*210mm 10pcs/ctn |
Options
-Function: Triac Dimmable / CCT Adjustable
-Connection Types: Lead in wire / Linkable connection / Seamless connection
-Installation: Standard Clip for surface mounted
Applications
● Housing & office decoration
● Exhibition hall & Office,airport
● hotel,hall,ballroom,shopping malls
● office buildings,home etc

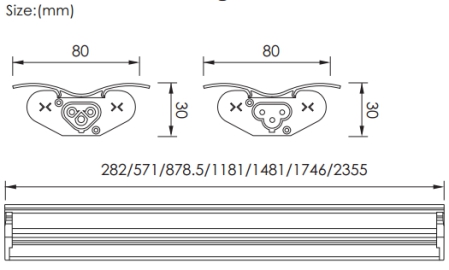

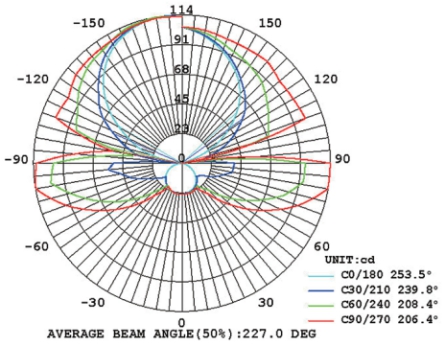

Product line drawing Light distribution curve
